SYSTEM SPECIFICATIONS

Package Includes

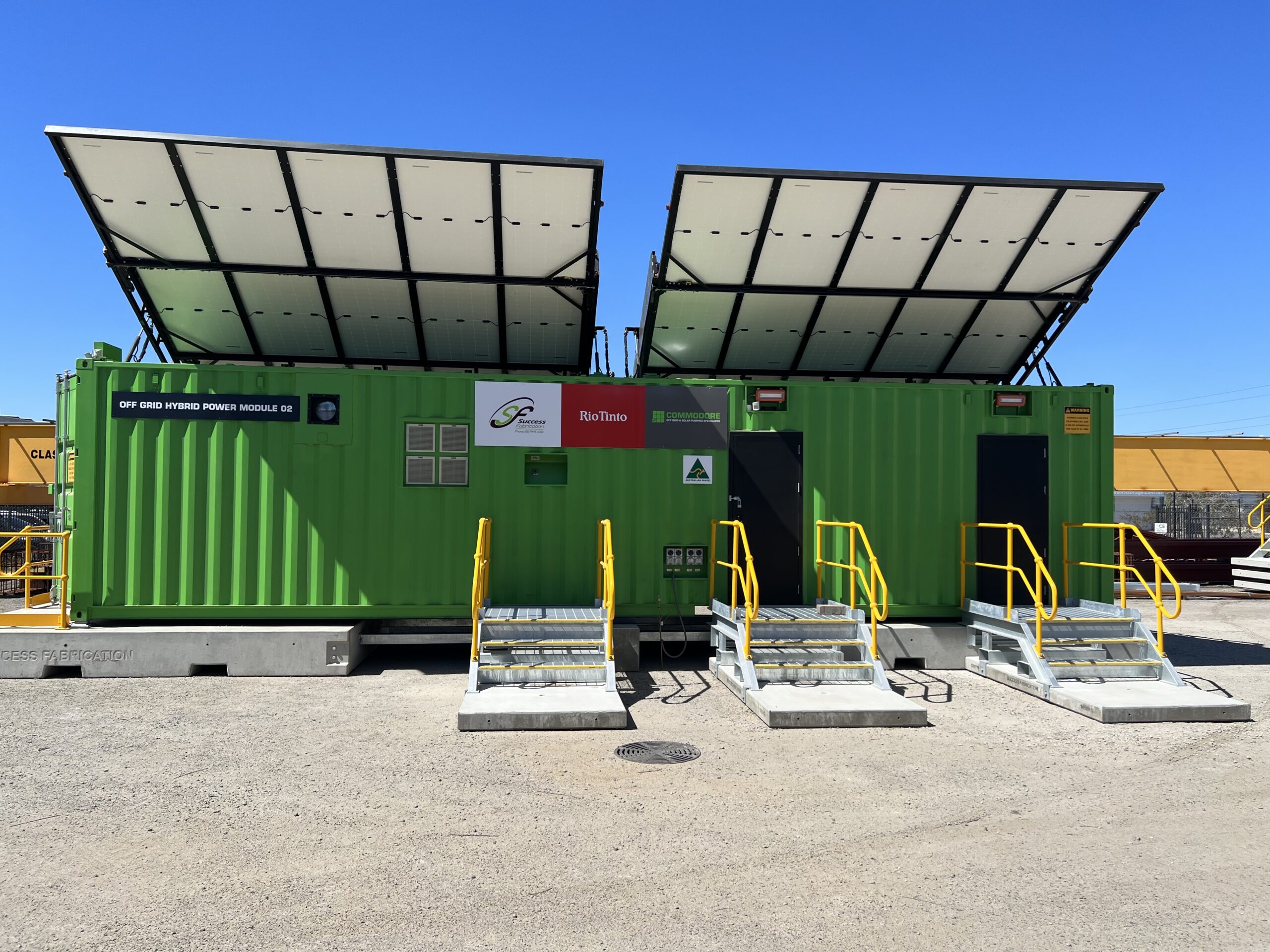

• • 40ft shipping container fully pre-wired and configured for deployment onsit
  • Hydraulic tilting array – certified to wind region A when in open positio Cyclone rating to be supplied for stow away position.
  • Solar panel Self-cleaning system (Brush system, waterless cleaning)
  • Victron Quattro 45KVA 3Phase inverter charger system (3x 15kVa Quattro 48V Inverter Charger Units)
  • 120kWh Pylontech lithium battery bank (24 x 5kWh Pylontech US5000B modules)
  • 9 Battery Racks x 4 (allows room for extra battery capacity if the need arises)
  • 7kW solar array consisting of 30 x 390W JA Premium solar panels
  • Victron SmartSolar 450/200 charge controller DC coupled x 3 (allows for expansion of additional 2x containers to beadded)
  • Victron Cerbo GX system monitor with touch screen and online acce
  • 3-Phase weatherproof lug outlets for power supply to building
  • Split System Air conditioner fitted in insulated power r
  • Split System Air conditioner fitted in insulated generator room.
  • Plug point connections for additional solar arr
  • Operating manual and commissioning guide
  • 56 kVa water-cooled Cummings diesel generator 3Phase with auto sta
  • Pre-wired and configured system fully operational and tested before shippin
  • Lifetime support and system monitorin
  • Electrical certificate of safety and complian
  • Complete set of electrical drawings and user manua
  • Mechanical Engineering certificate for frame and container, including verification of structural integrity, wind loadingand cyclone rating in closed positio
  • 1000Litre Bunded fuel tank, spill tray, and additional installation work
  • Anemometer Wind Sensor with aluminium cups and base fitted for Automatic fold away in high winds.
  • 2 Personal Access Door fitted to each container as Emergency exit, -Emergency exit handles to be fitted inside to one door -Emergency Exit lights and signage to be installed.
  • Personal Access Door fitted to each container for access to Generator room and fuel cell.
  • Commodore 600 x 600 Network rack.
